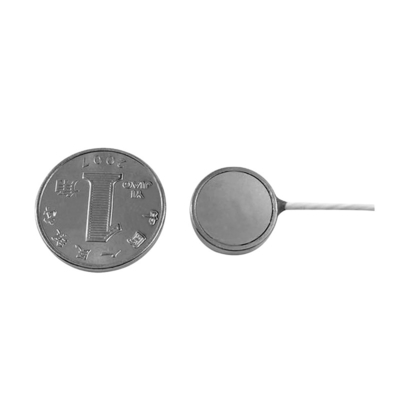

Name: XJC-Y01-12.7 button type load cell zemic load cell pressure sensor pressure sensor
Brand: XJC-Y01-12.7 button type load cell zemic load cell pressure sensor pressure sensor
SKU: XJC-Y01-12.7
Price: 1 USD
Availability: InStock
Rating: 4.9 (137 reviews)

Eigenschaften Galerie Produkt-Beschreibung Fordern Sie ein Zitat

Eigenschaften

Technische Daten

Model Number: XJC-Y01-12.7

Type: Load Cell

Usage: Load Cell Sensor, PRESSURE SENSOR

Theory: Resistance Sensor

Output: Digital Sensor

Accuracy: 1.0%FS

Name: XJC-Y01-12.7

Material: Stainless Steel

Capacity: 5-100kg

Safe load limit: 150%

life: Full scale more than 1 million times

Repeatability: 0.05%F.S

Grundinformation

Model Number: XJC-Y01-12.7

Zahlung und Versand AGB

Supply Ability: 1000 Piece/Pieces per Day

Produkt-Beschreibung

FEATURE

1. XJC-Y01-12.7 adopts high-precision resistance strain principle

2. Miniature load cell,Low profile

3. Made of stainless steel

4. Customizabble,IP66 protection

TECHNICAL PARAMETERS

Capacity	5,10,20,50,100KG	Material	Stainless steel
Accuracy	0.05% F.S.	Rated output	1.5±15%mV/V
Recommended excitation	5-10VDC	Maximum excitation	10V
Natural frequency	≥2KHZ	Compensated temp range	- 10 ~ 60 ºC
Hysteresis	0.05% F.S.	Operating temp range	- 20 ~ 80 ºC
Repeatability	0.05% F.S.	Insulation	≥5000MΩ/100VDC
Input impedance	350(700) ± 5 Ω	Output impedance	350( 700)± 5 Ω
Creep (30min)	0.05% F.S.	Temp effect on output	0.05% F.S. / 10ºC
Zero balance	± 2% F.S.	Temp effect on zero	0.05% F.S. / 10ºC
Safe load limit	150%	Ultimate load limit	500%
Cable size	∅5 x3m	Life	Full scale more than 1 million times
Wire connection	Ex + : Red; Ex - : Black; Sig + : Green; Sig - : White

click for more information

Company Information

Shenzhen XJC Technology Co., Ltd is specializing in developing high-tech industrial products. We are a high-tech innovative company including designing, product R&D, manufacturing, marketing, and services. Now we have Sensor Business Division, Advanced Educational Instrument Business Division, and Automation System Solution Business Division. And the main products are including industrial sensors, such as compression load cells, weighing load cells, smart transmitters, and smart control indicators; educational instruments for automatic detection, and automatic control and software development platform; custom equipments for industrial automation, and system solutions to industrial automatic production lines, etc.

Our Services

A. One For any product, that is confirmed to be faulty and made by our company, we will provide the following after-sale services.

H. The above mentioned product will either be repaired or replaced with a new one within one year from the date of delivery. Free repair will be provided. If the faulty product can not be repaired by us, we replace it with a new one.

L. We will charge as per actual situation to repair the faulty product if it's over one year from the date of delivery.

click for more information
